Transaction executor

Introduction​

Transaction Executor is a crucial part of Everscale blockchain node. It applies incoming messages to accounts, sealing the end result of this operation into a block in the form of a transaction object.

The Transaction Executor algorithms determine several critical aspects of smart-contracts behavior, such as:

  • How a balance of an account is affected after the message gets processed
  • What outbound messages will be generated as a result
  • Should the account be frozen or deleted?
  • What fees should be charged from the accounts balance

To be able to rigorously reason about a smart-contract behavior, it is important to construct the accurate model of this module, explain the main concepts, define its properties. In other words, make the groundwork for you, the reader, to foster the integration of this logic into the reasoning framework of your choice.

In the current work, we made the best-effort attempt to write such specification.

Document Structure​

The document consists of two logical parts, intermixed with each other: the explanation part and the specification part.

The explanation part is done by providing extensive comments for data structures used through-out the Transaction Executor. The data structures are presented as Rust code snippets, taken from the original Node code. Sometimes, we intentionally omit details that are not relevant to the Transaction Executor, requiring much wider context to be explained.

The specification part is presented in two flavors. When the precision is required, we describe the behavior by providing the pseudo-code implementing some algorithm. For more general properties, we formulate them in a form of semi-formal statements about the system behavior.

By comparison to the program implementation, the specification pseudo-code overapproximates the implementation by throwing away non-relevant parts of the logic, for example: sophisticated error handling, non-interesting parts of the state being removed, introducing reasonable assumptions that greatly simplifies the logic, etc.

In other words, the pseudo-code shows how the system behaves for its significant parts, putting away everything else.

Everscale Platform Architecture​

The main actors of the EverScale blockchain are smart-contracts. Smart-contracts are programs that operate user valuable assets on their behalf. Valuable assets are usually cryptocurrency tokens or some digital goods, like NFTs.

Smart-contract execution is triggered by a message sent from some other party. If the message was delivered from the outside world (i.e. from the user program), it is said to be external. Otherwise, the message is considered internal .

Smart-contracts may also generate log records called events. Those records are used as information signals for an external observers. They foster communication between smart-contracts and off-chain programs.

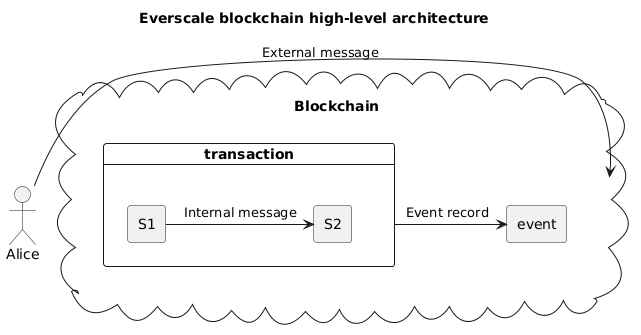

The platform overall architecture is depicted​

Platform Implementation​

EverScale blockchain is a database operated by a peer-to-peer network of computing nodes. The database store users code and data in a form of programmable units called smart-contracts. Smart-contacts may communicate with other contracts and outside world by sending messages.

The computing node is called blockchain node in our context.

Among other things, blockchain nodes are responsible for storing the smart-contract state, delivering messages from users and smart-contracts, executing the smart-contacts code when needed.

Transaction Executor module is a part of the blockchain node responsible for proper execution of a smart-contract code upon receiving a message addressed to that smart-contract. The result of this execution is an updated smart-contract state and the transaction record that gets sealed into the block candidate.

We now go into details on the internals of this module.

Transaction Executor Module​

In this section, we go into the technical details of Transaction Executor module. The source code of the module is available here.

Remark​

In our opinion, the name of this module was chosen quite unfortunate. In its current form, it feels like the object being executed is a transaction. This is not true.

Transaction is an outcome of executing a message on a smart-contract state using the Transaction Executor logic. Hence, it is the message that is being executed, not the transaction.

Nevertheless, we stick with the original name not to confuse developers too much.

Inputs and Outputs​

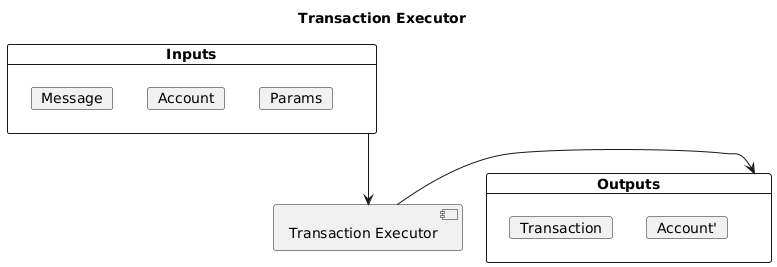

The principal architecture of the module is depicted​

We now describe each input/output entity in detail, together with the logic of the computation.

Multichain Architecture​

Everscale has a native support for multiple blockchains running in parallel.

Each blockchain might be established by introducing a separate chain called workchain. Each workchain has a unique integer identifier in a range -127 ... 127, the values -1 and 0 are already taken. Smart-contracts from different workchains may interact with each other by message passing.

At the moment, the system implements only two workchains — Masterchain (id -1) and Workchain (id 0).

caution

Currently, the creation of new workchains is not supported.

Multicurrency payments​

The native coin of Everscale blockchain is called EVER. However, Everscale has an ability to work with other types of coins. While system payments like gas and storage fees are made only in Evers, the other value transfers may contain coins of other currencies. This contrasts with most of other blockchains where there is only a single native cryptocurrency, and other currencies may be made only using artificial token smart-contracts.

Currently, this feature is not used widely.

caution

In this document, we limit our specification effort only for the case of a single currency — Evers. This choice significantly simplifies the business logic of the execution handlers.

Hashing Algorithm​

Transaction Executor uses hashing in several places to compactly store data structures fingerprints. It is done in two steps. First, the data structure gets converted into a tree-like form. Then, a special hashing algorithm is applied to that tree. The basic hash function used is SHA256 from Sha2 Rust package.

The exact hashing algorithm, as well as tree-like representation is not interesting for our purposes, so we do not consider it here. For details, check this.

Parameters​

Besides, incoming message and account, Transaction Executor has to have some external information regarding the current blockchain and non-blockchain state to support the TVM capabilities. For example, it has to know the current time to provide it for smart-contracts. It has to have some random seed to support the random number generator facility. All of this is passed using the ExecuteParams structure.

pub struct ExecuteParams {
  pub state_libs: HashmapE,
  pub block_unixtime: u32,
  pub block_lt: u64,
  pub last_tr_lt: Arc<AtomicU64>,
  pub seed_block: UInt256,
  pub debug: bool
}

ExecuteParams fields​

FieldDescription
state_libsA set of references to external libraries. This mechanism is not supported currently
block_unixtimeCurrent time in Unix Epoch
block_ltBlock logical time
last_tr_ltThe last transaction logical time
seed_blockRandom number generator seed
debugShould the TVM output debug information during its execution

Transaction​

Transaction is an object that describes the successful execution of a message on the account. If a message execution results in an error, such execution does not lead to a transaction creation. After transaction is created, it gets sealed into the block. And after the block is negotiated with fellow validators, it find its way into the Masterchain. From that point, it stays there forever1.

Transaction is an output of the Transaction Executor, so we have to examine it more closely.

pub struct Transaction {
   pub account_addr: AccountId,
   pub lt: u64,
   pub prev_trans_hash: UInt256,
   pub prev_trans_lt: u64,
   pub now: u32,
   pub outmsg_cnt: i16,
   pub orig_status: AccountStatus,
   pub end_status: AccountStatus,
   pub in_msg: Option<ChildCell<Message>>,
   pub out_msgs: OutMessages,
   pub total_fees: CurrencyCollection,
   pub state_update: ChildCell<HashUpdate>,
   pub description: ChildCell<TransactionDescr>,
}

ExecuteParams fields​

FieldDescription
account_addrAccount identifier
ltTransaction creation logical time
prev_trans_hashPrevious transaction hash value
prev_trans_ltPrevious transaction logical time
nowCurrent time in Unix Epoch
outmsg_cntNumber of generated outbound messages
orig_statusAccount state upon receiving the message
end_statusAccount state after executing the message
in_msgProcessed message
out_msgsSet of generated outbound messages
total_feesTotal fee amount for all the processing
state_updateHash footprint of the account state change
descriptionTransaction Descriptor

Transaction Executor​

Transaction Executor module is responsible for applying the incoming message to the destination account, using the supplied parameters. In case of success, Transaction Executor outputs the newly created transaction and the updated account.

The main entry point is the function execute_with_libs_and_params() within transaction_executor.rs module. Other entry points were either flagged as deprecated, or reduce to calling this function after some minor parameters mangling.

The message execution is being done in several phases.

A phase is a logical step during the message execution. It may finish successfully or with an error. In case of an error, the next phase may not be executed. Phases are done mostly in a fixed order, but there are some nuances.

Let us warn you that the phase is not just an implementation detail of the Transaction Executor internals that may be easily discarded. Message execution phases are a part of EverScale smart-contracts programming architecture. It is assumed that you have a good grasp on it, to be able to do proper troubleshooting in case something is not working as expected. Without this knowledge, it may be challenging to debug the problem.

This document aims to support programmers in their strive for this knowledge.

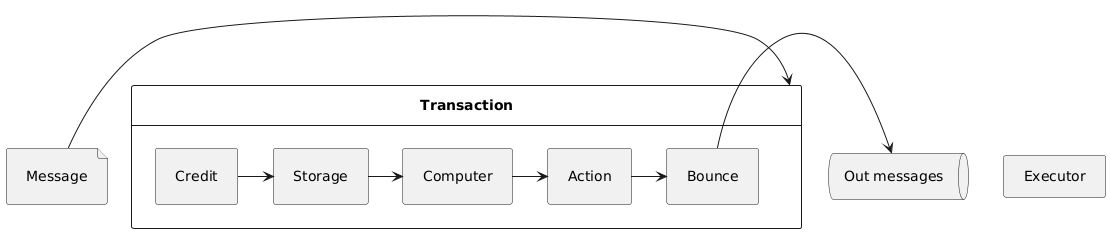

Transaction executor message processing general scheme​

  • Credit — Message coins are put on the balance agent Storage.
  • Storage — Storage fee is deducted from the balance agent Computer.
  • Computer — The contract bytecode gets executed inside TVM with proper parameters. Contract generate Actions.
  • Action — Generated actions get executed by the action handler, producing outbound messages.
  • Bounce — Bounce phase is executed if failure happened on compute phase or action phase. It sends back the reply with coins, mostly.
  • Out messages — Queue get propagated to other validators.

Transaction Executor Types​

There are several type of messages in EverScale. Besides already mentioned ordinary messages, there are also a special type of messages that is a part of a wider protocol. For example, TickTock messages, SplitMerge messages, etc.

For each type of messages, there exists a separate Transaction Executor. In this work, we consider only the OrdinaryTransactionExecutor, that is defined in ordinary_transaction.rs.

Main Entry Point​

fn execute_with_libs_and_params(
    &self,
    in_msg: Option<&Message>,
    account_root: &mut Cell,
    params: ExecuteParams,
) -> Result<Transaction>

ExecuteParams fields​

FieldDescription
selfReference to the object calling the function
in_msgIncoming message messages
account_rootAccount record serialized in a form of Cells account
paramsTransaction Executor parameters parameters

As a result, the function returns either Ok(Transaction) object or Err value. Please note that besides returning the Transaction, there is a side-effect of mutating the account_root object. This justifies our generalization that it returns two objects: the transaction and the updated account record.

BlockchainConfig parameters​

Besides ExecuteParams, the Transaction Executor relies on BlockchainConfig parameters. They are passed implicitly, at the Transaction Executor creation time.

BlockchainConfig is a set of globally defined parameters regulating different nuances of blockchain work. For example, prices for smart-contract execution, storage and a set of system contract addresses. The latter is needed to let Transaction Executor apply special logic for them.

Those parameters are global to the network, and negotiated between all the validators in advance. They are stored in a special system smart-contract, in the Masterchain.

pub struct BlockchainConfig {
  gas_prices_mc: GasLimitsPrices,
  gas_prices_wc: GasLimitsPrices,
  fwd_prices_mc: MsgForwardPrices,
  fwd_prices_wc: MsgForwardPrices,
  storage_prices: AccStoragePrices,
  special_contracts: FundamentalSmcAddresses,
  capabilities: u64,
  global_version: u32,
  raw_config: ConfigParams,
}
FieldDescription
gas_prices_mcFees for Masterchain smart-contract execution
gas_prices_wcFees for Workchain smart-contract execution
fwd_prices_mcFees for delivering messages in Masterchain
fwd_prices_wcFees for delivering messages in Workchain
storage_pricesFees for information storage
special_contractsSet of system smart-contract addresses
capabilitiesSet of operation-mode flags
global_versionMinimum blocks version number allowed to be included in the chain
raw_configDictionary with blockchain settings

Code Execution Fee​

As in most of blockchain, in Everscale the execution of a smart-contract costs money. Usually, this fee is deduced from the coins attached to the message initiating the call, but there are nuances.

The fee amount to be deducted from the balance is calculated based on values found in gas_price_mc, gas_price_wc structures. They are defined as follows:

pub struct GasLimitsPrices {
  pub gas_price: u64,
  pub gas_limit: u64,
  pub special_gas_limit: u64,
  pub gas_credit: u64,
  pub block_gas_limit: u64,
  pub freeze_due_limit: u64,
  pub delete_due_limit: u64,
  pub flat_gas_limit: u64,
  pub flat_gas_price: u64,
  pub max_gas_threshold: u128,
}
FieldDescription
gas_pricePrice of 1 unit of gas, expressed in Nano Evers
gas_limitMaximum gas amount for execution of a single message for an ordinary account
special_gas_limitMaximum gas amount for execution of a single message for a system account
gas_creditGas credited for an account to execute the external message
block_gas_limitMaximum gas amount of the whole block
freeze_due_limitValue of an account debt leading to account freeze
delete_due_limitValue of an account debt leading to account removal
flat_gas_limit
flat_gas_price
max_gas_threshold

Message Passing Fee​

Validators do the work of message delivery. To compensate their efforts, account pays for the message passing. The message passing fee depends on BlockchainConfig parameters fwd_prices and the message size. The fwd_prices_mc and fwd_prices_wc have the following definition:

pub struct MsgForwardPrices {
  pub lump_price: u64,
  pub bit_price: u64,
  pub cell_price: u64,
  pub ihr_price_factor: u32,
  pub first_frac: u16,
  pub next_frac: u16,
}

The fee amount is calculated using the expression:

msg_fwd_fees=lump_price+bit_price×msg.bits+cell_price×msg.cellsmsg\_fwd\_fees = lump\_price + bit\_price \times msg.bits + cell\_price \times msg.cells

Here, msg.bits — bit-length of the message body, msg.cells is a total amount of cells that this message consists of.

Data Storage Fee​

In Everscale, account is charged a fee for storing the data. The fee amount is calculated using the formula:

fee=(cells∗prices.cell_price+bits∗prices.bit_price)∗Δfee = (cells * prices.cell\_price + bits * prices.bit\_price) * \Delta

Δ\Delta — the time interval between now and the latest payment moment, measured in seconds. Here, we assume that storage prices stay constant during the Δ\Delta interval. The storage fee gets charged on each message processing storage_phase.

For greater flexibility, the storage prices may be changed depending on the current supply/demand situation. It is done by negotiating new blockchain config parameters prices.cell_priceprices.cell\_price and prices.bit_priceprices.bit\_price among validators. After validators accept it, new parameters are written in the Masterchain config smart-contract.

After the change, previous price parameters do no get lost. The whole history of storage price changes is stored in the config. It is done to provide precise calculation of the storage fee that take into account all the price changes during the interval of calculation.

Data Storage Fee Calculation​

Here we describe the storage fee calculation expression in its generality.

Lets assume we have the following list of prices equipped with a timestamp of a moment when the price change took place:

T={t0,t1,...,tN}T = \{ t_0, t_1, ..., t_N \}

Pr=⟨(pr0,t0),(pr1,t1),...,(prN,tN)⟩Pr = \langle (pr_0, t_0), (pr_1, t_1), ..., (pr_N, t_N) \rangle

Here, pr_0 is reserved for the initial prices set in the genesis block of the blockchain, and t0t_0 is a timestamp of those initial prices being set.

Let now denote the current timestamp, i.e. the moment of time when we want to calculate the storage fee, measured in Unix Epoch.

Its value is always greater or equal than the most recent price change timestamp.

Let last_paid denote the timestamp of the latest storage payment. If the payment didn't take place, last_paid=0last\_paid = 0.

To simplify the calculation formula, let us introduce a new list Pr′Pr', such that:

Pr′=⟨(prk,tk),...,(prN,tN)⟩Pr' = \langle (pr_k, t_k), ..., (pr_N, t_N) \rangle

where t_k is the least timestamp among values t1...tNt_1 ... t_N that is greater than last_paid.

tk=min{ti∣ti∈T∧ti>last_paid}t_k = min \{ t_i | t_i \in T \land t_i > last\_paid \}

In other words, the values tk,...,tNt_k, ..., t_N form a subset of T where each value is strictly greater than last_paid.

We also add two more elements from the left and the right:

Pr′′=⟨(prk,last_paid)⟩⋅Pr′⋅⟨(prN,now)⟩Pr'' = \langle (pr_k, last\_paid) \rangle \cdot Pr' \cdot \langle (pr_N, now) \rangle

Here, dot operator denotes lists concatenation operation.

We use the following shortcuts: pri=fst(Pri′′)pr_i = fst(Pr''_i) the first element of a two-element tuple, and ti=snd(Pri′′)t_i = snd(Pr''_i), the second element.

The total storage fee for the time interval is:

total_storage_fee=∑i=1..∣Pr′′∣(cells∗pri.cell_price+bits∗pri.bits_price)∗(ti−ti−1)total\_storage\_fee = \sum_{i=1..|Pr''|}{(cells * pr_{i}.cell\_price + bits * pr_{i}.bits\_price) * (t_i - t_{i-1})}

Data Storage Fee Calculation Algorithm​

For greater convenience, besides having the formula, we provide the pseudo-code for the algorithm calc_storage_fee, implemented in imperative fashion.

Input:

  • config — current blockchain configuration, has type BlockchainConfig
  • storage_info — the account storage info struct, has type StorageInfo.
  • is_masterchain — is the account inhabits Masterchain or not, has type Bool
  • now — current time, measured in Unix Epoch, has type UInt

Output:

  • fee — the fee amount to be deducted from the account balance, has type UInt
  • storage_info — updated account storage info, has type StorageInfo
def calc_storage_fee(config, storage_info, is_masterchain, now):
    cells = storage_info.used.cells
    bits = storage_info.used.bits
    last_paid = storage_info.last_paid
    prices = config.storage_prices   # see AccStoragePrices

    assert len(prices) > 0

    if now <= last_paid or last_paid == 0 or now <= prices[0].utime_since:
        return 0

    fee = 0

    # calculate the fee according to prices that were actual
    # during the specific period of time
    for i in len(prices):
        cur_price = prices[i]
        if i < len(prices) - 1:
            end = prices[i + 1].utime_since
        else:
            end = now_time

        if end >= last_paid:
            delta = end - max(cur_price.utime_since, last_paid)
            if is_masterchain:
                fee += (cells * cur_price.mc_cell_prices_ps + \
                    bits * cur_price.mc_bit_price_ps) * delta
            else:
                fee += (cells * cur_price.cell_price_ps + \
                    bits * cur_price.bit_price_ps) * delta

    storage_info.last_paid = end

    return (fee, storage_info)

Special Smart-Contracts​

In Everscale blockchain, there is a set of smart-contracts that have a distinguished status in the system. For those contracts, validators are obligated to process their execution in a special priveledged manner. Such smart-contracts are called special or system. Accounts storing those contracts are called the same.

Special smart-contracts enjoy the following privilege:

  • No fee gets deducted for the code execution
  • No fee gets deducted for the storage use
  • No fee gets deducted for message passing
  • It has a special maximum gas limit, see GasLimitsPrices.special_gas_limit
  • Allowed to process TickTock timer messages

Upon executing a message for one of those special contracts, the Transaction Executor has to apply all those conditions.

caution

In this document, we mainly focus on ordinary accounts, leaving the special accounts processing details aside.

GlobalCapabilities Options​

There are several flags defining different aspects of the blockchain node operation mode. They are defined in GlobalCapabilities enumeration.

ParameterDescription
CapCreateStatsEnabledAllow update block statistics. Not related to Transaction Executor.
CapBounceMsgBodyInclude the first 256 bits of the original message in the bounce message body.
CapReportVersionInclude the blockchain version info into the block.
CapShortDequeueSome special mode of managing outbound messages by the Validator. Not related to Transaction Executor
CapFastStorageStatUse alternative algorithm to update the structs AccountsStat.
CapInitCodeHashUse the field init_code_hash in the AccountState.
CapOffHypercubeTurn off Hypercube routing algorithm for message delivery
CapMycodeProvide the virtual machine with the code of a smart-contract being executed.
CapMbppEnabledNot used
CapIhrEnabledNot used
CapSplitMergeTransactionsNot used

RawConfig options​

Besides already mentioned options, there are yet another set of options residing in the BlockchainConfig.raw_config. This field has the following structure:

pub struct ConfigParams {
  pub config_addr: UInt256,
  pub config_params: HashmapE // <u32, SliceData>
}
  • config_addr — is the configuration smart-contract account identifier (the workchain identifier equals - 1);
  • config_params — dictionary with parameters, dictionary keys refers to an option number. We will not go deep into those options, because they are not relevant to our work.

See ton-labs-block/src/config_params.rs for further investigation.

Error Code Enumeration​

When Transaction Executor encounters an error during message processing, it returns a special answer to the calling side. The answer contains an error code. Here we list possible error codes and their short description. In our further discussion, we rely on those mnemonic names.

Error Code Enumeration​

When Transaction Executor encounters an error during message processing, it returns a special answer to the calling side. The answer contains an error code. Here we list possible error codes and their short description. In our further discussion, we rely on those mnemonic names.

Error Mnemonic NameDescription
InvalidExtMessageIncorrect format of an incoming external message
TrExecutorError(e)Wide range of errors during message processing
TvmExceptionCode(e)TVM produced exception e during byte-code execution
NoAcceptErrorThe smart-contract did not accept external message
NoFundsToImportMsgNot enough funds to process external message
ExtMsgComputeSkipped(r)During the external message processing, the Compute phase was skipped with the reason r

Account State Update​

In the transaction object, there is a special field reflecting the change of the account state, the state_update field of type HashUpdate.

The type is defined as follows:

pub struct HashUpdate {
  pub old_hash: UInt256,
  pub new_hash: UInt256,
}

Here old_hash refers to a hash value taken from the initial account state, before message processing; the new_hash is a hash taken from the updated account state, after successful message processing.

Transaction Description Object​

During the incoming message processing, Transaction Executor constructs the report about the processing. This report has a special name — Transaction Description, and defined by the following structure:

pub struct TransactionDescrOrdinary {
  pub credit_first: bool,
  pub storage_ph: Option<TrStoragePhase>,
  pub credit_ph: Option<TrCreditPhase>,
  pub compute_ph: TrComputePhase,
  pub action: Option<TrActionPhase>,
  pub aborted: bool,
  pub bounce: Option<TrBouncePhase>,
  pub destroyed: bool
}

This description object may be used for fast checkups on the main system invariants, critical for its safety, during runtime.

FieldDescription
storage_phStorage phase descriptor
credit_phCredit phase descriptor
compute_phCompute phase descriptor
actionAction phase descriptor
bounceBounce phase descriptor
credit_firstCredit phase was executed before Storage phase
abortedIs Action phase failed
destroyedIs account deleted after message execution

We now describe each descriptor separately.

Storage Phase Descriptor​

pub struct TrStoragePhase {
  pub storage_fees_collected: Grams,
  pub storage_fees_due: Option<Grams>,
  pub status_change: AccStatusChange
}
  • storage_fees_collected denotes the amount of tokens deducted from the account balance to cover the storage fee.
  • storage_fees_due denotes the debt value, if there is any. Otherwise, this value equals None.
  • status_change denotes the possible account status change. It may have been the case that the status were frozen or deleted due to having a significant debt value. Possible values are:
pub enum AccStatusChange {
  Unchanged,
  Frozen,
  Deleted,
}

Credit Phase Descriptor​

The Credit Phase descriptor is defined as follows:

pub struct TrCreditPhase {
  pub due_fees_collected: Option<Grams>,
  pub credit: CurrencyCollection,
}
FieldDescription
due_fees_collectedAmount of coins deducted from the message balance to cover the debt of the account, if any existed at the beginning of the credit phase. If there were no debt, the value is None .
creditMessage value after the fees were conducted from it.

Compute Phase Descriptor​

Compute Phase descriptor is defined with the following enumeration:

pub enum TrComputePhase {
  Skipped(TrComputePhaseSkipped),
  Vm(TrComputePhaseVm)
}
Choice 1. Skipped​

If the Compute phase was not successfully performed, the descriptor value is Skipped in this case. It should have an argument with following type:

pub struct TrComputePhaseSkipped {
  pub reason: ComputeSkipReason
}

reason has to be one of the following:

pub enum ComputeSkipReason {
  NoState,
  BadState,
  NoGas,
}
FieldDescription
NoStateCaused by the following conditions: 1) The account did not exist by the time of message arrival, and the incoming message did not contain the StateInit part; 2) The account was not initialized and the incoming message did not contain the StateInit part.
NoStateCaused by the following conditions: 1) The account did not exist by the time of message arrival, and the incoming message did not contain the StateInit part; 2) The account was not initialized and the incoming message did not contain the StateInit part.
BadStateCaused by the following conditions: 1) The account was in AccStateUninit state, the message did contain the StateInit part, but an attempt to initialize the account with the given StateInit failed due to being inconsistent with the account; 2) The account was in AccStateFrozen state, the message contained the StateInit part, but an attempt to unfreeze the account with the given state init failed due to being inconsistent with the account.
NoGasCaused by the following conditions: 1) After Credit and Storage phases, the account balance had no coins: its balance equals zero; 2) Values gas_limit and gas_credit, calculated with the init_gas algorithm, both equals 0.
Choice 2. Successful computation​

Successful Compute phase result is defined by the following TrComputePhaseVm structure:

pub struct TrComputePhaseVm {
  pub success: bool,
  pub msg_state_used: bool,
  pub account_activated: bool,
  pub gas_fees: Grams,
  pub gas_used: VarUInteger7,
  pub gas_limit: VarUInteger7,
  pub gas_credit: Option<VarUInteger3>,
  pub mode: i8,
  pub exit_code: i32,
  pub exit_arg: Option<i32>,
  pub vm_steps: u32,
  pub vm_init_state_hash: UInt256,
  pub vm_final_state_hash: UInt256
}
FieldDescription
successCompute phase completion status. See compute_phase_success
gas_feesFees for the gas used by a smart-contract execution, see here
gas_usedAn exact amount of gas used by the VM during the execution
gas_limitA strict upper bound on the amount of gas allowed for this account init_gas
gas_creditAn amount of gas credited to be used for external messages before being accepted init_gas
vm_stepsNumber of steps performed by the VM
exit_codeComputation exit code, see compute_phase_exitcode
exit_argComputation exit argument, see compute_phase_exitcode
modeAlways equals 0
vm_init_state_hashNot used
vm_final_state_hashNot used
msg_stated_usedNot used
account_activatedNot used

Action Phase Descriptor​

Action Phase descriptor is defined as follows:

pub struct TrActionPhase {
  pub success: bool,
  pub valid: bool,
  pub no_funds: bool,
  pub status_change: AccStatusChange,
  pub total_fwd_fees: Option<Grams>,
  pub total_action_fees: Option<Grams>,
  pub result_code: i32,
  pub result_arg: Option<i32>,
  pub tot_actions: i16,
  pub spec_actions: i16,
  pub skipped_actions: i16,
  pub msgs_created: i16,
  pub action_list_hash: UInt256,
  pub tot_msg_size: StorageUsedShort,
}
FieldDescription
successAction phase completed successfully. The success condition is described here.
validAction phase is valid. The validity condition is described here.
result_codeAction phase failed with the result code, see action_result_codes. In case of success, the value equals to 0
result_argIn case of an error, the item number of an action in the action list that caused the error
no_fundsTrue if the error was caused by a balance insufficiency
status_changeEquals AccStatusChange::Deleted in case of the account being deleted after processing actions
total_fwd_feesTotal fees for the SendMsg actions processing
total_action_feesTotal fees for the whole action list processing
tot_actionsTotal number of actions in the action list at a beginning of the Action phase
spec_actionsNumber of special actions, i.e. Reserve, SetCode, SetLib
msg_createdNumber of successful SendMsg actions
action_list_hashHash of action list calculated at a beginning of the Action phase
tot_msg_sizeTotal size of all the generated messages
skipped_actionsNot used

Action Result Codes​

Result CodeDescription
RESULT_CODE_ACTIONLIST_INVALIDMessage serialization error
RESULT_CODE_TOO_MANY_ACTIONSContract generated more actions than allowed. Maximum actions count is 255
RESULT_CODE_UNKNOWN_OR_INVALID_ACTIONBinary serialization error, or invalid flags. See remarks.
RESULT_CODE_INCORRECT_SRC_ADDRESSWide source address address, or the source address does not equal to the account address
RESULT_CODE_INCORRECT_DST_ADDRESSIncorrect destination address, or destination workchain is not allowed to receive messages, or destination workchain does not exist
RESULT_CODE_ANYCASTDestination address of type Anycast. It is no longer supported and considered an error.
RESULT_CODE_NOT_ENOUGH_GRAMSInsufficient balance. See remarks.
RESULT_CODE_NOT_ENOUGH_EXTRAExtra-tokens balance is insufficient to execute to action
RESULT_CODE_INVALID_BALANCEReserve action lead to an error, or outgoing message is too big to process
RESULT_CODE_BAD_ACCOUNT_STATEActions SetCode or ChangeLib lead to an error
RESULT_CODE_UNSUPPORTEDSendMsg action has incorrect flags set
Remarks:​
  1. RESULT_CODE_UNKNOWN_OR_INVALID_ACTION reasons are:
  • Actions serialization error
  • SendMsg action has invalid flags, that is:
    • The mutually exclusive flags are set: SENDMSG_REMAINING_MSG_BALANCE and SENDMSG_ALL_BALANCE
    • Message was sent with an unknown flag sendmsg_flags;
    • The flag SENDMSG_DELETE_IF_EMPTY is set, but the flag SENDMSG_ALL_BALANCE isn't;
  • Reserve action has invalid flags
    • Unknown flag is set
    • Flag RESERVE_PLUS_ORIG is set, but RESERVE_REVERSE isn't
  1. RESULT_CODE_NOT_ENOUGH_GRAMS reasons are:
  • For SendMsg action, the flag SENDMSG_REMAINING_MSG_BALANCE is set, but SENDMSG_PAY_FEE_SEPARATELY isn't
  • Message balance is insufficient to cover message delivery fees
  • Account balance is insufficient to cover all message delivery fees

Bounce Phase Transaction Descriptor​

Bounce Phase descriptor is defined with the following enumeration:

pub enum TrBouncePhase {
  Negfunds,
  Nofunds(TrBouncePhaseNofunds),
  Ok(TrBouncePhaseOk),
}
  • Negfunds choice is not used.
  • Nofunds(TrBouncePhaseNofunds) denotes the insufficiency of account balance, details are put into the parameter value
  • Ok(TrBouncePhaseOk) denotes success, i.e. that the bounce message has been formed and put into the Msg queue. Details of the phase are put into the parameter value.
Choice 1. Nofunds​
pub struct TrBouncePhaseNofunds {
  pub msg_size: StorageUsedShort,
  pub req_fwd_fees: Grams,
}
  • msg_size denotes the size of generated bounce message. This value is not used.
  • req_fwd_fees denotes the fee for the message delivery.
Choice 2. Ok(TrBouncePhaseOk)​
pub struct TrBouncePhaseOk {
  pub msg_size: StorageUsedShort,
  pub msg_fees: Grams,
  pub fwd_fees: Grams,
}
  • msg_size not used.
  • fwd_fees is a full forwarding fee for the bounce message.
  • msg_fees is a part of fwd_fees that goes to the validator processing the message.

Actions​

After successfully executing a smart-contract code, the TVM virtual machine provides the executor with updated contract state and a list of actions to be further processed.

In our context, an action refers to an order for the Transaction Executor to perform a distinguished stateful act. It could be sending a message, changing the smart-contract's code or reserving coins on the balance.

Type of Actions​

Here we provide a set of possible actions, with the description. We go deep on each of them further.

pub enum OutAction {
  None, // default value
  SendMsg {
    mode: u8,
    out_msg: Message,
  },
  SetCode {
    new_code: Cell,
  },
  ReserveCurrency {
    mode: u8,
    value: CurrencyCollection,
  },
  ChangeLibrary {
    mode: u8,
    code: Option<Cell>,
    hash: Option<UInt256>,
  }
}
ActionDescription
SendMsgSend the message out_msg to some account using the provided mode
ReserveCurrencyManage the account's balance to guarantee its sufficiency
SetCodeChange the contract byte-code with the given new_code
ChangeLibraryUpdate code library

Action SendMsg​

SendMsg(mode,outmsg)SendMsg(mode,out_msg) action sends a message to an account. The message out_msgout\_msg contains the destination address as well as the payload to be delivered.

This action has a lot of modes that can be combined using logical OR operator. Some mode combinations are prohibited. See rc_remarks.

ModeValueDescription
SENDMSG_ORDINARY0Send the message. Without other modes, the forwarding fee for the delivery is paid by the receiver.
SENDMSG_PAY_FEE_SEPARATELY1Send the message. The forwarding fee is paid by the sender.
SENDMSG_IGNORE_ERROR2If an error occurs during the processing of this action, ignore it.
SENDMSG_DELETE_IF_EMPTY32The account gets deleted if, after the action processed, the balance becomes zero
SENDMSG_REMAINING_MSG_BALANCE64The message should carry all the remaining value of the inbound message additionally to the value specified in the field
SENDMSG_ALL_BALANCE128The message should carry all the remaining balance of the account, instead of the value specified in the value field

Action ReserveCurrency​

ReserveCurrency(mode,val)ReserveCurrency(mode, val) action makes a coin reserve on the balance. This action has several modes of operation. Modes can be combined.

ModeValueDescription
RESERVE_EXACTLY0Reserve exactly valval coins
RESERVE_ALL_BUT1Reserve acc_balance−valacc\_balance - val coins, where acc_balanceacc\_balance is a remaining balance of the account
RESERVE_IGNORE_ERROR2Skip the action on failure
RESERVE_PLUS_ORIG4Reserve acc_balance+valacc\_balance + val coins. It should be used only with RESERVE_REVERSE.
RESERVE_REVERSE8Reverse value of valval in the calculation of the reserve, i.e. substitute valval with −val-val

Action SetCode​

Currently, we skip this action.

Message Processing Algorithm​

In this section, we present a pseudo-code for incoming message processing algorithm.

The algorithm is divided in two mutually exclusive parts:

Both algorithms rely on executing some or all of the phases:

Please note that we consider only ordinary accounts here. The algorithm for executing messages on special accounts is not considered.

Input:

Output:

On success, returns Ok(acc1, trans), such that:

On error, returns error of the type ExecutorError

Modifies:

def ExecuteMessage(in_msg, account, params, config):
if in_msg.header is ExtOutMsgInfo:
return ExecutorError.InvalidExtMessage
if in_msg.header.dst == None:
return ExecutorError.TrExecutorError()
if in_msg.header is ExtInMessageHeader and account.balance == 0:
return ExecutorError.NoFundsToImportMsg()

      acc = account.clone()

      if in_msg.header is ExtInMsgInfo:
          return ExecuteExternalMessage(in_msg, acc, params, config)
      elif in_msg.header is IntMsgInfo:
          return ExecuteInternalMessage(in_msg, acc, params, config)

      return ExecutorError.TrExecutorError()

Internal Message Processing Algorithm​

At this point, the message is known to be internal. Execute it with the given account.

Input:

Output:

On success, returns Ok(acc1, trans), such that:

  • acc1 — updated account, has type Account
  • trans — transaction, has type Transaction On error, returns error of the type TransactionExecutor.TrExecutorError

Modifies:

  • account
def ExecuteInternalMessage(in_msg, account, params, config):
acc_balance = account.balance
msg_balance = in_msg.hdr.value
credit_first = not in_msg.hdr.bounce
lt = max(account.last_tr_time, max(params.last_tr_lt, in_msg.lt + 1))
tr = Transaction(account.account_id, account.status, lt, now(), in_msg)
descr = TransactionDescrOrdinary(credit_first: credit_first)

      # If the bounce flag is not set, execute the Credit Phase
      # before Storage phase
      if credit_first:
          credit_ph_res = credit_phase(account, tr, msg_balance, acc_balance)
          if credit_ph_res is Ok:
              descr.credit_ph = credit_ph_res.credit_ph
          else:
              return ExecutorError.TrExecutorError()

      # Execute Storage Phase
      storage_ph_res = storage_phase(account,
                                     acc_balance,
                                     tr,
                                     is_masterchain,
                                     config)
      descr.storage_ph = storage_ph_res.storage_ph

      # Why this is needed?
      if credit_first and (msg_balance > acc_balance):
          msg_balance = acc_balance

      original_acc_balance = account.balance - tr.total_fees

      if not credit_first:
          credit_ph_res = credit_phase(account, tr, msg_balance, acc_balance)
          if credit_ph_res is Ok:
              descr.credit_ph = credit_ph_res.credit_ph
          else:
              return ExecutorError.TrExecutorError()

      # Both storage and credit phases are completed at this point.
      # We need to update the last_paid field not to loose this
      # information in case of some further errors showing up.
      account.last_paid = params.block_unixtime

      # Parameters to be passed into TVM
      smci = build_contract_info(acc_balance,
                                 account.address,
                                 params.block_lt,
                                 lt,
                                 params.seed_block)
      # First element is the bottom of the stack
      stack = Stack([acc_balance, msg_balance, Cell(in_msg), in_msg.body, False])

      # Execute Compute Phase
      compute_ph_res = compute_phase(in_msg,
                                     account,
                                     acc_balance,
                                     msg_balance,
                                     params.state_libs,
                                     smci,
                                     stack,
                                     is_masterchain)

      if not (compute_ph_res is Ok):
          return ExecutorError.TrExecutorError()

      descr.compute_ph = compute_ph_res.compute_ph
      actions = compute_ph_res.actions
      new_data = compute_ph_res.new_data

      # Generated outbound messages to be sent into other accounts
      out_msgs = []

      compute_gas_fees = descr.compute_ph.gas_fees
      tr.total_fee = tr.total_fee + compute_gas_fees

      if descr.compute_ph.success:
          act_phase_res = action_phase(tr,
                                       account,
                                       original_acc_balance,
                                       acc_balance,
                                       msg_balance,
                                       phase.gas_fees,
                                       actions,
                                       new_data)
          if act_phase_res is Ok:
              descr.action = act_phase_res.action_ph
              out_msgs = act_phase_res.msgs
          else:
              return ExecutorError.TrExecutorError()

      if descr.action != None:
          if descr.action.status_change == AccStatusChange.Deleted:
              account = Account()
              descr.destroyed = True
          descr.aborted = not descr.action.success
      else:
          descr.aborted = True

      # If the Action Phase failed, and the incoming message allows
      # bounce answer, execute the Bounce Phase
      if (descr.aborted == True) and (in_msg.hdr.bounce = True):
          if descr.compute_ph is Vm:
              bounce_ph_res = \
                  bounce_phase(msg_balance,
                               acc_balance,
                               compute_gas_fees,
                               tr,
                               my_addr)
              if bounce_ph_res is Ok:
                  descr.bounce = bounce_ph_res.bounce_ph
                  if (bounce_ph_res.bounce_msg != None):
                      out_msgs = out_msgs + [bounce_ph_res.bounce_msg]
              else:
                  return ExecutorError.TrExecutorError()
          if descr.bounce is Ok:
              acc_balance = original_acc_balance
              if account.status == AccountStatus.AccStateUninit and \
                 acc_balance == 0:
                  account = Account()
              else:
                  if account.is_none() and acc_balance != 0:
                      account = Account.uninit(is_msg.hdr.dst, 0, last_paid,
                                               acc_balance)

      if account.status() == AccountStatus.AccStateUninit and acc_balance == 0:
          account = Account()

      tr.acc_end_status = account.status
      account.balance = acc_balance
      params.last_tr_lt = lt

      upd_lt = add_messages(tr, out_msgs, params.last_tr_lt)
      account.last_tr_time = upd_lt
      tr.descr = descr
      return Ok(tr, account)

The function add_messages assigns the proper logical timestamp for each message from the out_msgs collection, and then include the message into the transaction.

def add_messages(tr, out_msgs, lt):
lt_next = lt + len(out_msgs) + 1
lt_next += 1

       for msg in out_msgs:
           msg.at = now()
           msg.lt = lt
           tr.add_out_message(msg)
           lt_next += 1

       return Ok(lt_next)

External Message Processing Algorithm​

The execution of external message on the given account.

Input:

Output:

On success, returns Ok(acc1, trans), such that:

  • acc1 — updated account, has type Account
  • trans — transaction, has type Transaction On error, returns error of the type TransactionExecutor.TrExecutorError

Modifies:

  • account
def ExecuteExternalMessage(in_msg, account, params, config):
acc_balance = account.balance
msg_balance = in_msg.hdr.value
is_masterchain = (in_msg.dst_workchain_id == -1)

      lt = max(account.last_tr_time, max(params.last_tr_lt, in_msg.lt + 1))
      tr = Transaction(account.account_id, account.status, lt, now(), Cell(in_msg))
      descr = TransactionDescrOrdinary(credit_first: True)
      in_fwd_fee = fwd_fee(Cell(in_msg))

      if acc_balance < in_fwd_fee:
          return ExecutorError.NoFundsToImportMsg

      tr.total_fee = tr.total_fee + in_fwd_fee

      # Execute Storage Phase
      storage_ph_res = storage_phase(account,
                                     acc_balance,
                                     tr,
                                     is_masterchain,
                                     config)
      descr.storage_ph = storage_ph_res.storage_ph

      if account.balance >= tr.total_fees:
          original_acc_balance = account.balance - tr.total_fees
      else:
          original_acc_balance = account_balance

      # Credit Phase is skipped for external messages

      # Storage phase is completed at this point
      # We need to update the last_paid field not to loose this
      # information in case of some further errors showing up
      account.last_paid = params.block_unixtime

      # Parameters to be passed into TVM
      smci = build_contract_info(acc_balance,
                                 account.address,
                                 params.block_lt,
                                 lt,
                                 params.seed_block)
      # First element is the bottom of the stack
      stack = Stack([acc_balance, msg_balance, Cell(in_msg), in_msg.body, False])

      # Execute Compute Phase
      compute_ph_res = compute_phase(in_msg,
                                     account,
                                     acc_balance,
                                     msg_balance,
                                     params.state_libs,
                                     smci,
                                     stack,
                                     is_masterchain)

      if compute_ph_res is Ok:
          descr.compute_ph = compute_ph_res.compute_ph
      else:
          return ExecutorError.TrExecutorError()

      # Generated outbound messages to be sent into other
      # accounts
      out_msgs = []

      compute_gas_fees = descr.compute_ph.gas_fees
      tr.total_fee = tr.total_fee + compute_gas_fees

      if descr.compute_ph.success:
          act_phase_res = action_phase(tr,
                                       account,
                                       original_acc_balance,
                                       acc_balance,
                                       msg_balance,
                                       phase.gas_fees,
                                       accounts,
                                       compute_ph_res.new_data)
          if act_phase_res is Ok:
              descr.action = act_phase_res.action_ph
              out_msgs = act_phase_res.msgs
          else:
              return ExecutorError.TrExecutorError()

      if descr.action != None:
          if descr.action.status_change == AccStatusChange.Deleted:
              account = Account()
              descr.destroyed = True
          descr.aborted = not descr.action.success
      else:
          descr.aborted = True

      # The Bounce Phase is skipped for external messages

      if account.status() == AccountStatus.AccStateUninit and acc_balance == 0:
          account = Account()

      tr.acc_end_status = account.status
      account.balance = acc_balance
      params.last_tr_lt = lt

      upd_lt = add_messages(tr, out_msgs, params.last_tr_lt)
      account.last_tr_time = upd_lt
      tr.descr = descr
      return Ok(tr, account)

Credit Phase​

At this phase, coins from the message balance goes to the account balance. This phase is executed only for internal messages. External messages have no coins attached.

Input:

  • account — account that the message is executed on, Account
  • tr — forming transaction, has type Transaction
  • msg_balance — message balance, has type Grams
  • acc_balance — current balance of the account, has type Grams

Output:

The phase always succeeds. It returns the value of type: /Ok(TrCreditPhase(collected, msg_balance))/, such that:

  • collected — the amount of coins withheld for the account debt, if any.
  • msg_balance — the amount of coins put on the account balance after the debt fee was conducted.

Modifies:

  • account — updates the due_payment field with the remaining debt, if any
  • tr — updates the total_fees field
  • msg_balance — the original message balance after the debt conducted, if any
  • acc_balance — the account balance with message coins
def credit_phase(account, tr, msg_balance, acc_balance):
due_payment = account.due_payment
collected = min(due_payment, msg_balance)

         msg_balance = msg_balance - collected
         due_payment_remaining = due_payment - collected

         account.due_payment = due_payment_remaining
         tr.total_fees = tr.total_fees + collected

         # put message coins on the account balance
         acc_balance = acc_balance + msg_balance
         return Ok(TrCreditPhase(collected, msg_balance))

Storage Phase​

This phase withholds the storage fee from the account balance. The fee amount is calculated using the algorithm calc_storage_fee calc_storage_fee

Input:

  • account — account that the message is executed on, has type Account
  • tr — forming transaction, has type Transaction
  • msg_balance — message balance, has type Grams
  • acc_balance — current balance of the account, has type Grams
  • config — main blockchain parameters, has type BlockchainConfig

Output:

This phase always succeeds. The return values may differ Ok(TrStoragePhase(collected, fee, status_change)), such that:

  • collected — the amount of coins withheld for the storage fee
  • debt — if the balance was insufficient, the remaining debt of the account
  • status_change — should the account be frozen or deleted afterwards

Modifies:

  • account — updates due_payment and status fields
  • acc_balance — the current balance after the fee got deducted
  • tr — updates the total_fee field
def storage_phase(account, tr, msg_balance, acc_balance, config):
# It is assumed that the current transaction must have a more
# recent timestamp than the latest payment timestamp.
# Otherwise, something is terribly wrong.
assert (tr.now >= acc.last_paid)

         # The account does not occupy any space, so do not charge the fee
         if account == None:
             return Ok(TrStoragePhase())

         fee, account.storage_info = config.calc_storage_fee(account.storage_info,
                                                             is_masterchain, tr.now)
         if account.due_payment > 0:
             fee = fee + account.due_payment
             account.due_payment = None

         if acc_balance >= fee:
             acc_balance = acc_balance - fee
             tr.total_fee = tr.total_fee + fee
             return Ok(TrStoragePhase(fee, None, AccStatusChange.Unchanged))

         storage_fees_collected = acc_balance
         acc_balance = 0
         tr.total_fee = tr.total_fee + storage_fees_collected
         fee = fee - storage_fees_collected

         need_freeze = fee > config.get_gas_config(is_masterchanin).freeze_due_limit
         need_delete = \
             (account.status == AccountStatus.AccStateUninit or \
              account.status == AccountStatus.AccStateFrozen) and \
              fee > config.get_gas_config(is_masterchain).delete_due_limit

         if need_delete:
             tr.total_fee = 0
             account = Account()
             return Ok(TrStoragePhase(storage_fees_collected, fee,
                                      AccStatusChange.Deleted))
         elif need_freeze:
             account.due_payment = fee
             if account.status == AccountStatus.AccStateActive:
                 account.status = AccountStatus.AccStateFrozen
                 return Ok(TrStoragePhase(storage_fees_collected, fee,
                                          AccStatusChange.Frozen))
             else:
                 return Ok(TrStoragePhase(storage_fees_collected, fee,
                                          AccStatusChange.Unchanged))
         else:
             account.due_payment = fee
             return Ok(TrStoragePhase(storage_fees_collected, fee,
                                      AccStatusChange.Unchanged))

Compute Phase​

Execute the account smart-contract, update the state, gather generated actions to pass on the next phase.

Input:

  • msg — message, has type Message
  • account — account, has type Account
  • acc_balance — current account balance, has type Grams
  • msg_balance — message balance,has type Grams
  • state_libs — code libraries, has type Blob (not relevant; omitted)
  • smc_info — extra data for TVM, has type SmartContractInfo
  • stack — TVM initial stack values
  • is_masterchain — is the account belongs to Masterchain, has type bool

Output:

  • On success, returns Ok(TrComputePhase, out_actions, new_data), such that:

    • TrComputePhase — actual Compute Phase Descriptor
    • out_actions — an ordered list of generated actions
    • new_data — updated smart-contract state

  • On error, returns Err(ExecutorError) with proper code.

Modifies:

  • account — updated account state
  • smc_info — mycode field set to point to the code of the smart-contract
  • acc_balance — account balance after the gas fee deduction
def uninit_account(account):
if account.storage.state is AccountState.AccountActive:
account.storage.state = AccountState.AccountUninit

    def compute_phase(msg, account, acc_balance, msg_balance, state_libs, smc_info,
                      stack, is_masterchain):
        result_acc = account.clone()
        vm_phase = TrComputePhaseVm()

        is_external = msg.header is ExtInMsgInfo
        if result_acc == None:
            new_acc = account_from_message(msg, msg_balance)
            if new_acc != None:
                result_acc = new_acc
                result_acc.last_paid = smc_info.unix_time
                account = result_acc
                account.uninit_account()

        if acc_balance == 0:
            return Ok(TrComputePhase:skipped(ComputeSkipReason.NoGas), None, None)

        gas_config = config.get_gas_config(is_masterchain)
        gas = init_gas(acc_balance, msg_balance, is_external, gas_config)

        # Is it possible?
        if gas.gas_limit == 0 and gas.gas_credit == 0:
            return Ok(TrComputePhase.skipped(ComputeSkipReason.NoGas), None, None)

        libs = []
        if msg.state_init != None:
            libs = state_init.libraries

        (reason, result_acc) = result_acc.compute_new_state(acc_balance, msg)

        if reason != None:
            return Ok(TrComputePhase.skipped(reason), None, None)

        vm_phase.gas_credit = gas.gas_credit
        vm_phase.gas_limit = gas.gas_limit

        if result_acc.code == None:
            if is_external:
                return ExecutorError.NoAcceptError()
            vm_phase.success = False
            vm_phase.gas_fees = gas_config.calc_gas_fee(0)
            if acc_balance < vm_phase.gas_fees:
                return ExecutorError.TrExecutorError()
            acc_balance -= vm_phase.gas_fees
            account = result_acc
            return Ok(TrComputePhase.Vm(vm_phase), None, None)

        code = result_acc.code
        data = result_acc.data

        libs.push(result_acc.libraries)   # local libraries
        libs.push(state_libs)             # masterchain libraries

        smc_info.mycode = code

        # Here, we initialize abstract TVM virtual machine.
        # The exact behavior of this device is out of scope.
        vm = TVM(code)
        vm.smc_info = smc_info
        vm.config = config
        vm.stack = stack
        vm.data = data
        vm.libraries = libs
        vm.gas = gas

        result = vm.execute()

        vm_phase.success = vm.commited_state.is_committed
        # vm.gas may have been updated after the execution
        gas_vm = vm.gas
        # how much credited gas remains unspent
        credit = gas_vm.gas_credit
        used = gas_vm.gas_used
        vm_phase.gas_used = used

        if credit != 0:
            if is_external:
                # The smart-contract has to explicitly accept the external message,
                # otherwise it gets rejected. The acceptance of a message manifests
                # itself in the credit field being equal to 0.
                return ExecutorError.NoAcceptError()
            vm_phase.gas_fees = 0
        else:
            gas_fees = gas_config.calc_gas_fee(used)
            vm_phase.gas_fees = gas_fees

        vm_phase.mode = 0
        vm_phase.vm_steps = vm.steps

        new_data = vm.commited_state
        if new_data == None:
            vm_phase.success = False

        out_actions = vm.actions
        if out_actions = None:
            vm_phase.success = False

        account = result_acc
        return Ok(TrComputePhase.Vm(vm_phase), out_actions, new_data)

Compute Phase Success Conditions​

We would like to explicitly articulate what it means for the Compute Phase to succeed. To do that, we specify the opposite condition, i.e. when it fails. In all other scenarios the phase is considered successful.

The success status is important, because it decides if the action phase has to be executed afterwards.

For the phase to fail, one of the following conditions must hold:

  1. The smart-contract data is not committed after the execution1
  2. The new smart-contract data is ill-formed
  3. The generated actions list is ill-formed
caution

The compute phase may be considered successful even if the computation thrown an exception. This is quite unintuitive, yet very important fact.

Compute Phase Exit Code​

The exit code value shows if the computation finished normally or was aborted due to some exception.

In case of the former, the exit code should have values 0 or 1.

In case of the latter, the exception might be of a system or custom type. If the exception is a system one, i.e. not intentionally emitted by the code using a special TVM instruction, the exit code contains one of the standard exit codes.

If the exception is custom, then the exit code should also equal to 0 or 1, but there is an extra exit_arg field that provides the user defined code.

For standard TVM exception codes, see here.

Calculate Gas Fee Algorithm​

The algorithm to calculate the amount of coins to be paid for the consumed gas.

Input:

  • gas_prices — a structure with actual gas prices, has type GasLimitsPrice
  • gas_used — amount of gas units consumed by the computation, has type Uint

Output: The amount of coins to be paid for the gas.

Modifies: None.

def calc_gas_fee(gas_prices, gas_used):
   if gas_used <= gas_prices.flat_gas_limit:
       return gas_prices.flat_gas_limit

   gas_fee = flat_gas_price + (gas_used - gas_prices.flag_gas_limit) * \
       gas_prices.gas_price
   return gas_fee

Compute New State Algorithm​

The algorithm compute_new_state computes the actual account state by given account record, the balance and the message. In particular, this algorithm is used to initialize uninitialized accounts with code and data borrowed from an external message with non-empty state_init field.

Input:

  • account — account structure, has type Account
  • acc_balace — current account balance, has type Uint
  • in_msg — message being executed, has type Message

Output:

  • On success, returns None.
  • On failure, returns one of the ComputeSkipReason codes.

Modifies:

  • account
def compute_new_state(account, acc_balance, in_msg):
    if account.status == AccountStatus.AccStateNonexist:
        if in_msg.state_init == None:
            return ComputeSkipReason.NoState
        else:
            return ComputeSkipReason.BadState
    elif account.status == AccountStatus.AccStateActive:
        return None
    elif account.status == AccountStatus.AccStateUninit:
        if in_msg.state_init != None:
            if account.try_activate_by_init_code_hash(in_msg.state_init) != None:
                return None
            else:
                return ComputeSkipReason.BadState
        else:
            return ComputeSkipReason.NoState
    elif account.status == AccountStatus.AccStateFrozen:
        if acc_balance != 0 and in_msg.state_init != None:
            if account.try_activate_by_init_code_hash(in_msg.state_init) != None:
                return None
            else:
                return ComputeSkipReason.BadState
        return ComputeSkipReason.NoState

    return None

Activate By Init Algorithm​

The algorithm try_activate_by_init_code_hash does the initialization or re-initialization of the account, with the given state_init.

Input:

  • account — account structure to be initialized
  • state_init — state_init field from the inbound message

Output:

On success, returns Ok On failure, returns Err

Modifies:

  • account — the field storage.state gets updated by the state_init on success
def try_activate_by_init_code_hash(account, state_init):
    if account == None:
        return Err

    new_state = None

    if account.storage.state == AccountState.AccountUninit:
        if hash(state_init) == account.addr.address:
            new_state = AccountState.AccountActive(
                hash(state_init.code), state_init
            )
        else:
            return Err
    elif account.storage.state == \
         AccountState.AccountFrozen(init_code_hash, state_init_hash):
        if state_init_hash == hash(state_init):
            new_state = AccountState.AccountActive(init_code_hash, state_init)
        else:
            return Err
    else:
        new_state = account.storage.state

    account.storage.state = new_state
    return Ok

Initial Gas Algorithm​

The algorithm computes TVM Gas-related initial values. Those values are provided to the virtual machine right before a smart-contract execution. If the execution takes more than allowed gas, it gets stopped.

Input

  • acc_balance: current account balance
  • msg_balance: message balance
  • is_external: is the message external
  • gas_info: structure with limits and prices for the workchain

Output

Returns the structure Gas() containing 4 values:

  • gas_limit: the maximum gas value available for any smart-contract of the workchain
  • gas_credit: the amount of gas to be credited for the execution before the smart-contract accepts the message
  • gas_max: the maximum allowed gas to be spent on the execution of the current smart-contract
  • gas_prices: a structure with gas prices

Modifies: None

def init_gas(acc_balance, msg_balance, is_external, gas_info):
    gas_max = min(gas_info.gas_limit, gas_info.calc_gas(acc_balance))
    gas_credit = 0
    if is_external:
        gas_credit = min(gas_info.gas_credit, gas_max)
        gas_limit = gas_credit
    else:
        gas_limit = min(gas_max, gas_info.calc_gas(msg_balance))

    return Gas(gas_limit, gas_credit, gas_max, gas_info.get_real_gas_price())

Account From Message Algorithm​

The algorithm creates new account by using data from the internal message. External messages are rejected. Creation of a new account based on an external message is located elsewhere. See compute_new_state algorithm.

Input

  • msg: incoming message being processed, has type Message
  • msg_remaining_balance: the current amount of coins left on the message balance, has type Uint

Output

  • Either returns a new Account object, or None. Both results are considered successful.

Modifies: None

def account_from_message(msg, msg_remaining_balance):
    if not (msg.header is IntMsgInfo):
        return None
    if msg_remaining_balance == 0:
        return None

    header = msg.header
    init = msg.state_init

    if init != None and init.code != None and hash(init) == header.dst.address:
        return Account.active_by_init_code_hash(hdr.dst, msg_remaining_balance,
                                                0, init)
    if header.bounce:
        return None
    else:
        return Account.uninit(hdr.dst, 0, 0, msg_remaining_balance)

Action Phase​

By given ordered action list, the Action phase executes each action item in the list by applying proper action handler.

Input:

  • tr — transaction being constructed, has type Transaction
  • account — account executing the message, has type Account
  • original_acc_balance — account balance after storage and credit phase, has type Uint
  • acc_balance — the mutable copy of the original_acc_balance, has type Uint
  • msg_remaining_balance — message balance without debt value if any, has type Uint
  • compute_phase_fees — gas fees from the compute phase, has type Uint
  • actions — list of actions generated on the Compute Phase, has type list(OutAction)
  • new_data — the smart-contract data after the Compute Phase, some binary blob.

Output:

On success, returns Ok(phase, messages) such that:

On error, returns Err(result_code), such that:

  • result_code describes a type of an error, see here.

Modifies:

  • tr
  • account
  • acc_balance
  • msg_remaining_balance
MAX_ACTIONS = 255

     def action_phase(tr, account, original_acc_balance, acc_balance,
                      msg_remaining_balance, compute_phase_fees, actions, new_data):

       acc_copy = account.clone()
       acc_remaining_balance = acc_balance
       phase = TrActionPhase()
       total_reserved_value = 0

       # Serialization issues are put aside, it is too low-level for
       # our purpose.

       # Interesting to note, actions overload leads to OK, not Error?
       if len(actions) > MAX_ACTIONS:
           phase.result_code = RESULT_CODE_TOO_MANY_ACTIONS
           return Ok(phase, [])

       phase.action_list_hash = hash(actions)
       phase.tot_actions = len(actions)

       account_deleted = False
       out_msgs_tmp = []

       address = acc_copy.address

       for action in actions:
           if action is OutAction.SendMsg:
               if action.mode & SENDMSG_ALL_BALANCE:
                   out_msgs_tmp.push((action.mode, action.out_msg))
                   continue
               result = outmsg_action_handler(phase,
                                              action.mode,
                                              action.out_msg,
                                              acc_remaining_balance,
                                              msg_remaining_balance,
                                              compute_phase_fees,
                                              config,
                                              address,
                                              total_reserved_value,
                                              account_deleted)
               if result is Ok:
                   phase.msgs_created += 1
                   out_msgs_tmp.push((action.mode, action.out_msg))
               else:
                   return result
           elif action is OutAction.ReserveCurrency:
               result = reserve_action_handler(action.mode,
                                               action.value,
                                               original_acc_balance,
                                               acc_remaining_balance)
               if result is Ok:
                   phase.spec_actions += 1
                   total_reserved_value += result.reserved_value
               else:
                   phase.valid = True
                   phase.result_code = result
                   # phase.no_funds = True
                   return Ok(phase, [])
           else:
               return Ok(phase, [])

       # process messages that have SENDMSG_ALL_BALANCE flag set last
       # skipping all other already processed messages
       out_msgs = []
       for (mode, out_msg) in out_msgs_tmp:
           if not (mode & SENDMSG_ALL_BALANCE):
               out_msgs.push(out_msg)
               continue
           result = outmsg_action_handler(phase, mode, out_msg,
                                          acc_remaining_balance,
                                          msg_remaining_balance,
                                          compute_phase_fees,
                                          config,
                                          address,
                                          total_reserved_value,
                                          account_deleted)
           if result == Ok:
               phase.msgs_created += 1
               out_msgs.push(out_msg)
           else:
               return Ok(phase, [])

       acc_remaining_balance += total_reserved_value
       tr.total_fee += phase.total_action_fees

       if account_deleted:
           phase.status_change = AccStatusChange.Deleted

       phase.valid = True
       phase.success = True

       acc_balance = acc_remaining_balance
       account = acc_copy
       account.data = new_data

       return Ok(phase, out_msgs)

Action Phase Success Condition​

All actions formed at the Compute Phase were successfully processed. If an action had a special error-canceling flag set, such error will not result in the whole phase failure. The action will be skipped in this case.

Action Phase Validity Condition​

To specify the validity condition, we will define the opposite, i.e. when the action phase is considered invalid.

  • The number of actions in the action list is greater than MAX_ACTIONS
  • Any SendMsg action processing finished with an error
  • The unknown action type was found during the processing

In all other cases, the action phase is considered valid.

SendMsg Action Handler​

The SendMsg action handler is responsible for generating messages to be sent. It may fail due to several reasons. In this case, the action phase get stopped, unless the SENDMSG_IGNORE_ERROR flag is set.

Input:

  • phase — actual Action Phase Descriptor
  • mode — flags for sending the message
  • msg — message being sent, has type Message
  • acc_balance — actual account balance, has type UInt
  • msg_balance — the message balance after debt being deducted, has type Uint
  • compute_phase_fees — gas fees from Compute Phase
  • config — blockchain configuration, has type BlockchainConfig
  • my_addr — account address
  • reserved_value — the value of coins reserved by the ReserveCoins actions
  • account_deleted — the output value, set to True if account needs to be deleted

Output:

On success, returns Ok(value), such that:

  • value — the amount of coins to be deducted from the account balance

On failure, returns Err(result_code), such that:

  • result_code — describes the error, see here

Modifies:

  • phase
  • mode
  • msg
  • acc_balance
  • msg_balance
  • account_deleted
MAX_MSG_BITS = 2**21  # 2 Mb
MAX_MSG_CELLS = 2**13

def get_fwd_prices(config, is_masterchain):
    if is_masterchain:
        return config.fwd_prices_mc
    else:
        return config.fwd_prices_wc

def outmsg_action_handler(phase, mode, msg, acc_balance, msg_balance,
                          compute_phase_fees, config, my_addr, reserved_value,
                          account_deleted):
    invalid_flags = SENDMSG_REMAINING_MSG_BALANCE or SENDMSG_ALL_BALANCE
    mode_not_valid = mode and (not SENDMSG_VALID_FLAGS)
    mode_has_invalid = mode and invalid_flags == invalid_flags
    mode_delete_not_sab = (mode and SENDMSG_DELETE_IF_EMPTY) and \
        (not (mode and SENDMSG_ALL_BALANCE))
    if mode_not_valid or mode_has_invalid or mode_delete_not_sab:
        return Err(RESULT_CODE_UNSUPPORTED)

    skip = not (mode and SENDMSG_IGNORE_ERROR)

    msg.header.src = my_addr
    fwd_prices = config.get_fwd_prices(msg.is_masterchain())
    compute_wd_fee = fwd_prices.fwd_fee(Cell(msg))

    # The message should be either internal message or event.
    # It is impossible to send external message from the smart-contract.
    if not ((msg.header is IntMsgInfo) or (msg.header is ExtOutMsgInfo)):
        return Err(-1)

    if msg.header is IntMsgInfo:
        # =====================================
        # Internal message
        # =====================================
        msg.header.bounced = False
        result_value = msg.header.value
        msg.header.ihr_disabled = True
        msg.header.ihr_fee = 0

        fwd_fee = max(msg.header.fwd_fee, compute_wd_fee)
        fwd_mine_fee = fwd_prices.mine_fee(fwd_fee)
        total_fwd_fees = fwd_fee + msg.header.ihr_fee
        fwd_remain_fee = fwd_fee - fwd_mine_fee

        if (mode and SENDMSG_ALL_BALANCE):
            result_value = acc_balance
            msg.header.value = acc_balance
            mode = (mode and (not SENDMSG_PAY_FEE_SEPARATELY))

        if (mode and SENDMSG_REMAINING_MSG_BALANCE):
            # Send all the remaining balance of the inbound message
            result_value += msg_balance
            if not (mode and SENDMSG_PAY_FEE_SEPARATELY):
                if result_value < compute_phase_fees:
                    return Err()
                result_value -= compute_phase_fees
            msg.header.value = result_value

        if (mode and SENDMSG_PAY_FEE_SEPARATELY):
            result_value += total_fwd_fees
        else:
            if msg.header.value < total_fwd_fees:
                return Err()
            else:
                msg.header.value -= total_fwd_fees
        msg.header.fwd_fee = fwd_remain_fee
    else:
        # =====================================
        # Event
        # =====================================
        fwd_mine_fee = compute_fwd_fee
        total_fwd_fees = compute_fwd_fee
        result_value = compute_fwd_fee

    if acc_balance < result_value:
        return Err(RESULT_CODE_NOT_ENOUGH_GRAMS)

    if (mode and SENDMSG_DELETE_IF_EMPTY) and \
       (mode and SENDMSG_ALL_BALANCE) and \
       (acc_balance + reserved_value == 0):
        account_deleted = True

    if total_fwd_fees != 0:
        phase.total_fwd_fees += total_fed_fees

    if fwd_mine_fee != 0:
        phase.total_action_fees += fwd_mine_fee

    phase.tot_msg_size.append(Cell(msg))

    if phase.tot_msg_size.bits() > MAX_MSG_BITS or \
       phase.tot_msg_size.cells() > MAX_MSG_CELLS:
        return Err(RESULT_CODE_INVALID_BALANCE)

    if mode and (SENDMSG_ALL_BALANCE or SENDMSG_REMAINING_MSG_BALANCE):
        msg_balance = 0

    return Ok(result_value)

ReserveCurrency Action Handler​

ReserveCurrency action handler is responsible for managing the reserve coins.

Input:

  • mode — Reserve flags for the reserve action, has type Uint
  • val — amount of coins to be reserved, has type Uint
  • orig_acc_balance — account balance after the deduction of the storage fee and the debt, if any, has type Uint
  • acc_remaining_balance — amount of coins left on the balance after the reserve, has type Uint

Output:

On success, returnsOk(reserved) value, such that:

  • reserved denotes the amount of coins being reserved for the account

On failure, returns Err(result_code), such that:

  • result_code

Modifies:

  • acc_remaining_balance — remaining account balance after the reserve amount being withheld
def reserve_action_handler(mode, val, orig_acc_balance, acc_remaining_balance):
    if mode and (not RESERVE_VALID_MODES):
        return Err(RESULT_CODE_UNKNOWN_OR_INVALID_ACTION)

    reserved = 0
    if mode and RESERVE_PLUS_ORIG:
        if mode and RESERVE_REVERSE:
            reserved = orig_acc_balance
            if reserved < val:
                return Err(RESULT_CODE_UNSUPPORTED)
            reserved -= val
        else:
            reserved = val
            reserved += orig_acc_balance
    else:
        if mode and RESERVE_REVERSE:
            return Err(RESULT_CODE_UNKNOWN_OR_INVALID_ACTION)
        reserved = val

    if mode and RESERVE_IGNORE_ERROR:
        reserved = min(reserved, acc_remaining_balance)

    remaining = acc_remaining_balance
    if remaining < reserved:
        return Err(RESULT_CODE_NOT_ENOUGH_GRAMS)

    remaining -= reserved
    remaining, acc_remaining_balance = acc_remaining_balance, remaining

    if mode and RESERVE_ALL_BUT:
        reserved, acc_remaining_balance = acc_remaining_balance, reserved

    return Ok(reserved)

Bounce Phase​

If error happens on the previous phases, the bounce phase takes place.

Input:

  • remaining_msg_balance — message balance after all previous phases executed, has type Uint
  • acc_balance — remaining account balance after all previous phases executed, has type Uint
  • compute_phase_fees — the fees of the compute phase, has type Uint
  • msg — message being processed, has type Message
  • tr — transaction object, has type Transaction

Output:

On success, returns Ok(TrBouncePhase, bounce_message), such that:

  • TrBouncePhase is a Bounce Phase Descriptor
  • bounce_message is a bounce message to be included into the out_msgs queue

On error, returns /ExecutorError.TrExecutorError/

Modifies:

  • tr — adds the bounce message delivery fee to the total

NOTE:

  • Function get_fwd_prices() was defined here.
def bounce_phase(remaining_msg_balance, acc_balance,
                 compute_phase_fees, msg, tr):
    header = msg.header
    if not header.bounce:
        return ExecutorError.TrExecutorError()

    header2 = header.clone()
    header2.src, header2.dst = header.dst, header.src
    storage = StorageUsedShort()
    fwd_prices = config.get_fwd_prices(msg.is_masterchain)
    fwd_full_fees = fwd_prices.fwd_fee(Cell())
    fwd_mine_fees = fwd_prices.mine_fee(fwd_full_fees)
    fwd_fees = fwd_full_fees - fwd_mine_fees

    if remaining_msg_balance < fwd_full_fees + compute_phase_fees:
        return Ok(TrBouncePhase.no_funds, None)

    acc_balance -= remaining_msg_balance
    remaining_msg_balance -= fwd_full_fees
    remaining_msg_balance -= compute_phase_fees
    header2.ihr_disabled = True
    header2.bounce = False
    header2.bounced = True
    header2.ihr_fee = 0
    header2.fwd_fee = fwd_fees
    header2.value = remaining_msg_balance

    bounce_msg = Message.with_header(header2)
    if config.has_capability(GlobalCapabilities.CapBounceMsgBody):
        body = msg.body.clone()
        body.shrink_data(0..256) # leave only 256 bits of the original body
        bounce_msg.body = body

    tr.total_fees += fwd_mine_fees
    return Ok(TrBouncePhase.ok(storage, fwd_mine_fees, fwd_fees), bounce_msg)

Functional Properties​

In this section, we define the main risks of malfunction in the module, and define several higher-level properties that should hold for the module to mitigate those risks.

Risks​

We define a risk as a hazard event causing a significant loss for the end user. We distinguish the following types of risks.

Financial Risks​

The Transaction Executor is the only place in the Node that is responsible for changing the account balance. Hence, any errors in related operations lead to tokens loss for the user. We identify the following financial risks for the module:

  1. Incorrect storage, delivery or gas fees calculation logic
  2. Incorrect message value processing logic
  3. Incorrect SendMsg, ReserveCoins actions processing logic

Behavioral Risks​

Everscale blockchain praises the distributed programming paradigm in application development. It means that instead of producing huge smart-contract monoliths, it is encouraged to separate the system into many manageable smart-contracts that communicate with each other by means of message passing.

The message passing scheme used in a system induces some protocol. If message passing breaks in an unexpected way, the whole protocol may stall, potentially leading to global system deadlocks.

It is of utter importance to guarantee that all produced correct messages will be eventually delivered to the destination account. The delivery process is complicated and rely on several node components. Here, we identify risks related to the Transaction Executor part of it:

  • Successful SendMsg action does not lead to creation of a corresponding message
  • Generated messages do not occur in the Out Message queue
  • Message delivery order gets broken
  • A bounce message does not get generated as expected

Assumptions​

All the properties formulated with the following assumptions in mind:

  • We consider only ordinary accounts, not system (special) accounts. For the latter, the properties might look different.

System Properties​

System properties are high-level general statements on the system behavior that the Transaction Executor should obey to. A subset of those statements related to mitigating the main risks, identified in the previous section.

Fees​

  • FEE1 — Gas fees for the computation equal the amount calculated using the algorithm calc_gas_fee.
  • FEE2 — Storage fees for an account equal the amount calculated using the algorithm calc_storage_fee.
  • FEE3 — Forwarding fees are calculated according to the algorithm message_passing_fees .
  • FEE4 — During the message execution process, all type of fees get deducted only once for an account.

Message Processing​

  • MSG1 — The message coins get credited to the account balance before executing a smart-contract logic.
  • MSG2 — Messages delivery order between the current account a1a_1 and some other account a2a_2 does not depend on messages sent from a1a_1 to some other account a3a_3, when a2≠a3a_2 \neq a_3.

Credit Phase Processing​

  • CRD1 — If the inbound message is external, the credit phase does not get executed.
  • CRD2 — If the inbound message is internal, the account's balance get credited with the message value minus the account debt, if any.

Storage Phase Processing​

  • STR1 — If there is not enough funds to cover the storage phase fee on the account's balance, and if the account is in the Active status, then the account gets a debt storing in the due_payment field of the account. If the debt value exceeds the freeze_due_limit value, the account is switched into a frozen status. If the debt exceeds the delete_due_limit value, the account gets deleted.

Compute Phase Processing​

  • CMP1 — If the Compute Phase fails, the execution of a message is aborted. The bounce message is not created in this case.
  • CMP2 — After the Compute Phase, the account's balance gets decreased exactly on the amount of consumed gas.

Action Phase Processing​

  • ACT1 — Each successful SendMsg action leads to creation of a message.
  • ACT2 — Successfully created message is added into the out queue exactly once.
  • ACT3 — If the action phase fails and the incoming message has the bounce flag set, then a single bounce message is generated and put into the out queue.

Bounce Phase Processing​

  • BNC1 — The bounce message is generated only if and only if all of the following conditions hold:

1) The incoming message is an internal message 2) The incoming message has the bounce flag set 3) During the message processing, the action phase was executed, but failed 4) After the failed action phase, there is enough funds left on the incoming message balance to cover the bounce message processing2.

  • BNC2 — A bounce message attach all the original message value minus the storage, gas and delivery fees.

Footnotes​

  1. Well, at least, until the part of the chain residing the transaction gets cut-off to reduce the disk space consumption.↩
  2. See the definition of COMMIT TVM instruction.↩
